Convert your existing mobile cattle crush into a reliable livestock weighing system with the Cattle Crate Weighing Retrofit Kit. The kit combines heavy-duty TruTest HD5T loadbars, a weld-on loadbar bracket and the JR5000 weigh scale indicator, providing an efficient solution for weighing, recording and managing livestock performance.
Cattle Crate Weighing Retrokit
€3,945.00 Incl. VAT
Product Description
Cattle Crate Weighing Retrokit
Weld-on DH5T Loadbar Bracket For A Mobile Crush. Convert your mobile crush to take TruTest loadbars to weigh your livestock.
Weld-On DH5T Loadbar Bracket

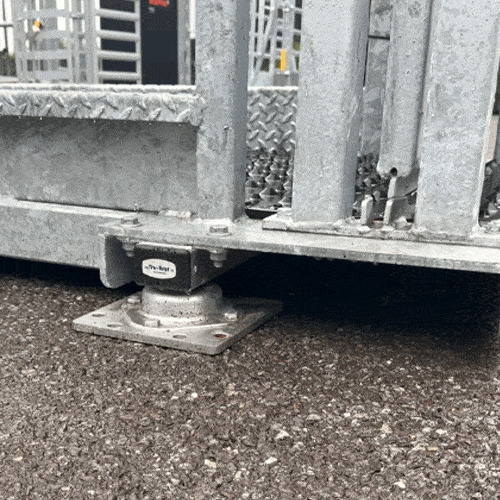

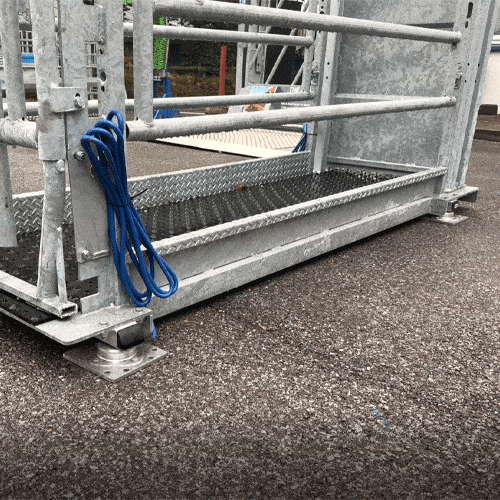

Designed to fit most mobile cattle crushes, the 990mm-wide weld-on bracket allows TruTest HD5T loadbars to be securely fitted beneath your crush. Manufactured from robust 10mm plate, the bracket is welded to the crush and the loadbars are then bolted into position.
- 990mm wide
- 845mm clearance inside the bolt holes
- Manufactured from 10mm plate
- Designed for TruTest HD5T loadbars
- Suitable for most mobile cattle crushes
- Weld-on installation (KEEP LOAD BARS AWAY WHILE WELDING)
- Supplied ungalvanised; cold galvanising spray is recommended after welding
TruTest HD5T Loadbars
The heavy-duty HD5T loadbars provide a 5,000kg total weighing capacity and are designed for dependable use in demanding livestock environments. Sealed load cells provide protection against moisture damage, allowing the loadbars to remain outdoors.
- 1,010mm long
- 5,000kg total capacity
- Heavy-duty construction
- Corrosion-resistant
- Sealed load cells for moisture protection
- Simple installation on a firm, level surface
- 2-year warranty

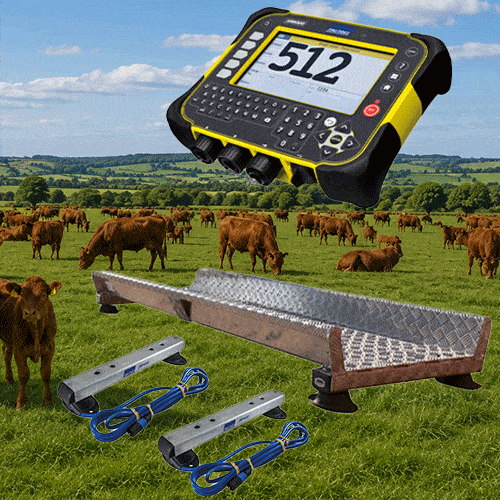

JR5000 Weigh Scale Indicator
The JR5000 provides advanced livestock weighing and data management capabilities. Its large colour screen and full keypad make recording animal information straightforward, while built-in EID and visual tag recording allows weights to be linked directly to individual animals.
The system can record up to 1,000,000 weight records across 1,000 sessions, with the ability to record two identification numbers and a test note for each animal. It also supports five-way drafting by weight, either manually or automatically when paired with a compatible auto-drafter.
Key Features
- Large colour screen
- Full keypad for easy data entry
- Records weights against EID and visual tags
- Records two IDs plus a test note per animal
- Five-way drafting by weight
- Manual or automatic drafting options
- Stores up to 1,000,000 records from 1,000 sessions
- Automatic data entry to Datamars Livestock Cloud
- 2-year warranty
Complete Weighing Solution
The Cattle Crate Weighing Retrofit Kit is an ideal way to add accurate livestock weighing and performance recording to an existing mobile crush, without requiring a dedicated weighing crate. From fitting the loadbars to recording individual animal weights and drafting cattle by weight, the system provides a practical solution for modern livestock management.
Do you have some questions about this product? We’d love to help! Just fill out the form below.
Additional Information
| Weight | 35 kg |
|---|
