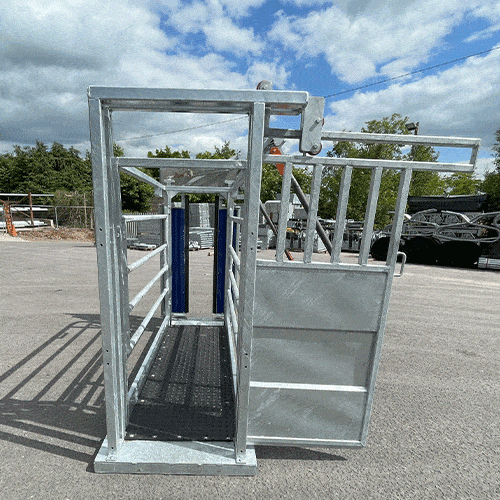

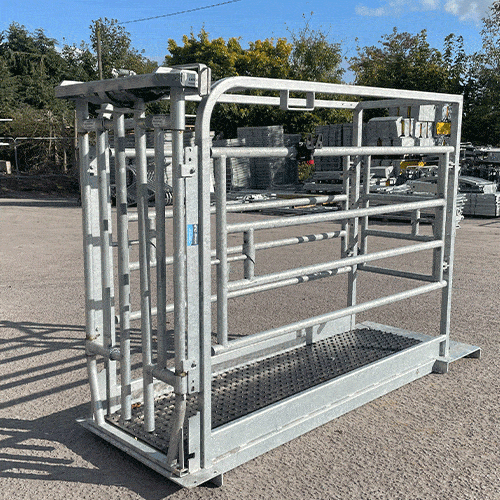

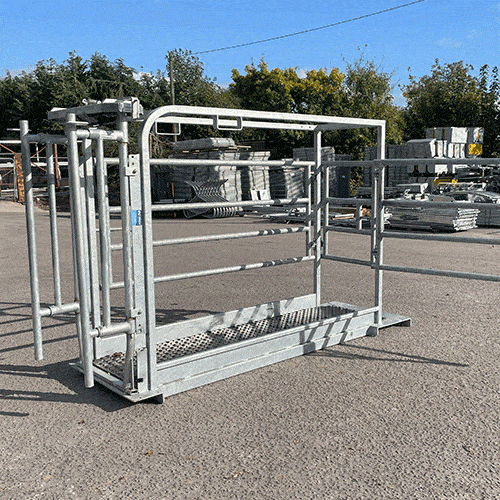

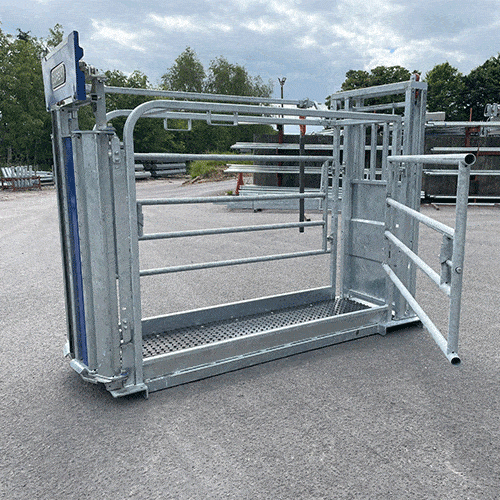

Mobile Cattle Crush

Product Description

The O’Donovan Engineering Mobile Cattle Crush is a robust, transportable solution designed for efficient livestock handling on any farm. Built with the same durable frame quality we’re known for, it can be supplied with or without an integrated Tru-Test weighing system, giving you the flexibility to add weighing capability when needed. Ideal for use around paddocks, temporary pens, or sites without permanent infrastructure.

Crush Specifications & Customisation Options

Our Mobile Cattle Crush is engineered for versatility and durability, featuring:

• Frame Construction: Heavy-duty galvanised steel frame with fully seam-welded joints for maximum strength and longevity.

• Flooring: Full rubber, providing a non-slip surface for animal safety and ease of cleaning.

• Mobility: Equipped with forklift guides for easy relocation around the farm, ensuring flexibility in handling operations.

Panel Options:

• • Hinged Panels: Allows for easy access to the side of the animal we headlocked.

  • Fixed Panels: Provide a sturdy and secure environment for livestock.

  • Split Panel: 2-bar split panel top and bottom. ( 4 bars in total, each side)

Rear Gate Options:

• • Sliding Back Gate: Facilitates smooth and quiet animal entry and exit.

•

  • Slam Latch Ped Gate: Offers quick and secure closure for enhanced safety.

Front Head Locking Gate Options:

• • ODEL Semi-Automatic Head Gate: Features adjustable neck width and a lock-open facility for ease of use.

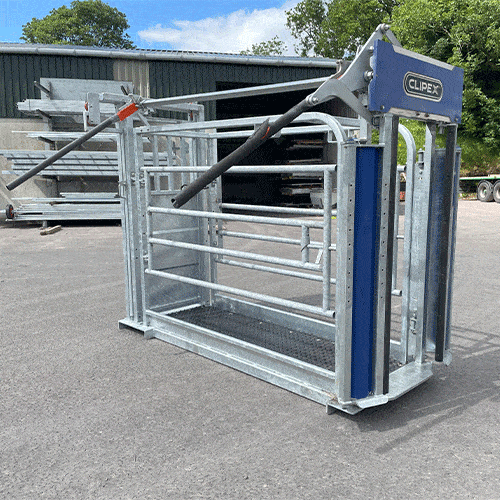

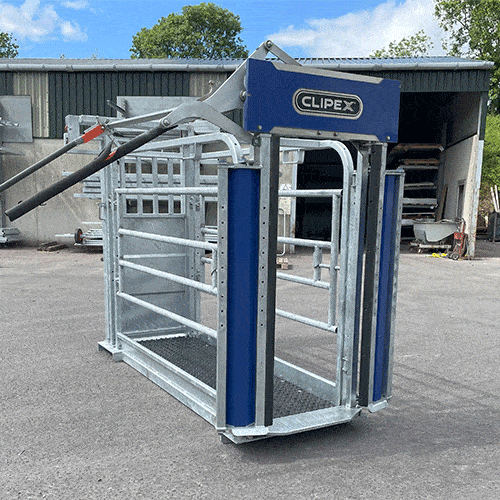

• • Clipex Head Gate: Known for its secure locking mechanism. Extension is also available for locking from the back of the crush.

Enhance your O’Donovan Engineering Mobile Cattle Crush with the optional Tru-Test HD5T load bars and JR5000 indicator for precise livestock weighing. This integrated system offers:

• HD5T Load Bars: Crafted from galvanised steel with aircraft-grade aluminium load cells, these bars provide a total capacity of 5,000 kg (11,000 lbs) and are designed for durability in harsh farm environments.

ODEL Mobile Cattle Weighing Crush

• JR5000 Indicator: Features a large colour screen, a full keypad for data entry, and the ability to store up to 1,000,000 records from 1,000 sessions. It supports five-way drafting by weight and integrates seamlessly with EID/VID tags.

This weighing system is fully compatible with the Mobile Cattle Crush, allowing for easy installation and reliable performance.
