N20 Luxury Cow Mattress is supplied to your required bed length with no joinings under the cow along with offering the animal 50mm of comfort. The mattress consists of a 20mm mat which is made up of a 10mm mat with 10mm studs. The studs allow for added compression and give extra grip to hold the mat in place. The foam base consists of 30 mm thick composite foam sheets, creating perfect deflection. The compression resistance is designed for high punctual loads by dairy cows, keeping the shape of the base for years. The mattress is fixed to the cow bed front and back with 6.4mmm x 70mm stainless steel nails that do not require rawl plugs. Fixings are spaced out every 55cm. Each cow space requires approx 3 stainless steel nails.
Huber Cow Mat & Mattress is made in Erding in Germany. Huber mats are designed for year-round housing so you can trust this mat will last. It is made from 100 % new tire compound, virgin rubber with fabric interlining, the virgin rubber allows for maximum compression when the animal lays down while the fabric interlining keeps the mats shape intact. Huber is the only mat on the market made in this way, it is also the only roll of mat manufactured as a continuous roll. other mats are individually manufactured and glued together to form a roll.
Why is virgin rubber important?
This means it is not recycled rubber that is being reheated which is the most common process. It is also the reason it doesn’t crack, break down or contain any carcinogenic materials or random untested fillers. The quality of Huber Mat comes from the materials used. Always check what your mat is made up of. We can also source 100% of the materials used in the production of the mat. Each mat has the exact same composition, so you get a consistent quality product.
Both 4GS Mattress, N20 Comfort Roll and Mattress come with 15 years warranty from Huber for the Irish grass-based system. Huber mats are design for all year round housing so you can trust this mat will last. O’Donovan Engineering has been selling Huber Technik comfort roll cow mat and mattresses for over 25 years in the Irish market and it is tried and tested by our customers. Quality lasts
N20 Luxury Cow Mattress is supplied to your required bed length with no joinings under the cow. The mattress consists of a 20mm mat which is made up of a 10mm mat with 10mm studs. The studs allow for added compression and give extra grip to hold the mat in place. The foam base consists of 30 mm thick composite foam sheets, creating perfect deflection.
The ultimate in Cow Comfort and Durability
The soft bed system is a double-layered mattress that guarantees optimum comfort for your cattle while also being extremely durable and hard-wearing
The system consists of a 30mm latex foam mattress covered by N20 20mm Rubber Top cover with fabric interlining for added strength

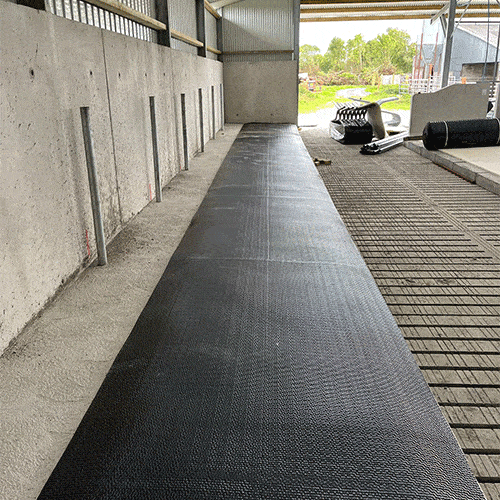

The mattress is cut to size and fixed in place at the back of the bed 3 fixings per space
A quality mark “DLG-approved for single value-determining criteria” is awarded to agricultural products. The products have successfully passed a DLG usability test according to independent and recognised evaluation criteria.
PAH TESTING
Polycyclic aromatic hydrocarbons (PAHs) are a group of over 100 different chemicals that are formed during the incomplete burning of coal, oil and gas, garbage, or other organic compounds. PAHs are known for their carcinogenic, mutagenic and teratogenic properties. Rubber and plastics are high risky materials containing PAHs.
DLG TESTING
The test centre technology and farm inputs of DLG (German Agricultural Society) is an independent test company in Frankfurt. DLG performed the following “Signum Tests” on Geyer & Hosaja rubber cow mats
Deformability & Elasticity Test: Evaluates softness, comfort, and elasticity of a rubber mat before use and after simulating 10 years of normal use.
Permanent Tread Load Test: Evaluates the top and bottom surface wear and softness of a rubber mat after simulating 10-years of normal use. Artificial Cow’s foot exerts 2,200 pounds of downward pressure.
Vet And Cow Comfort Researcher
Nele Schermeier is involved in large farm projects all over the world. These including Russia, Italy, England, Germany and Turkey, covering a wide range of different environments. Speaking on what makes the best rubber mat/mattresses, she said: “No matter what climatic situation or what kind of system the farms are using, in her opinion, consistency is key. “Only high-quality rubber mat/mattresses keep their quality features over a long period of time.” always comes down to: What is the best for our cows?”
A consistent high-quality rubber mat/mattress gives a cow the convenience she needs to feel safe underfoot to reduce stress. Slippery and uneven ground is a stressor to the dairy cow. Elevated stress hormone levels can have a negative effect on milk yield, reproductivity and even affect her unborn offspring. A testimony to the quality of Huber mat and mattresses is the fact that there have been 0% warranty claims over the last 30 years. Huber comes with a 15-year regressive warranty.
Over 150,000 Irish cows are currently lying on Huber Technik since we started distributing the product. A testimony to the quality of Huber mat and mattresses is the fact that there have been 0% warranty claims over the last 30 years. Huber comes with a 15-year regressive warranty on
Hugh MacEneaney, Teagasc Dairy Adviser, Mullinavat, Co Kilkenny
“Good facilities allow farmers to expand production and incomes and add to the asset value of the farm. They also lead to a better quality of life for the farm family by reducing the workload and the drudgery. In many cases, particularly on dairy farms, buildings pay for themselves over a 7-10 year period. This is especially true when capital grant and tax savings are available.”
